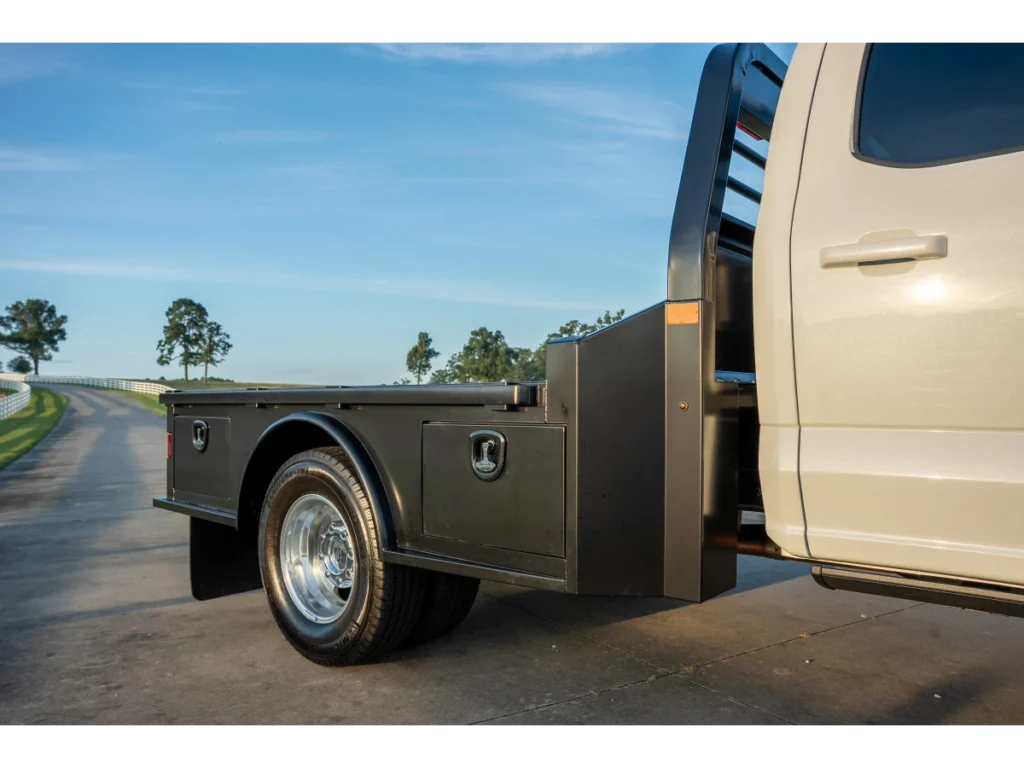

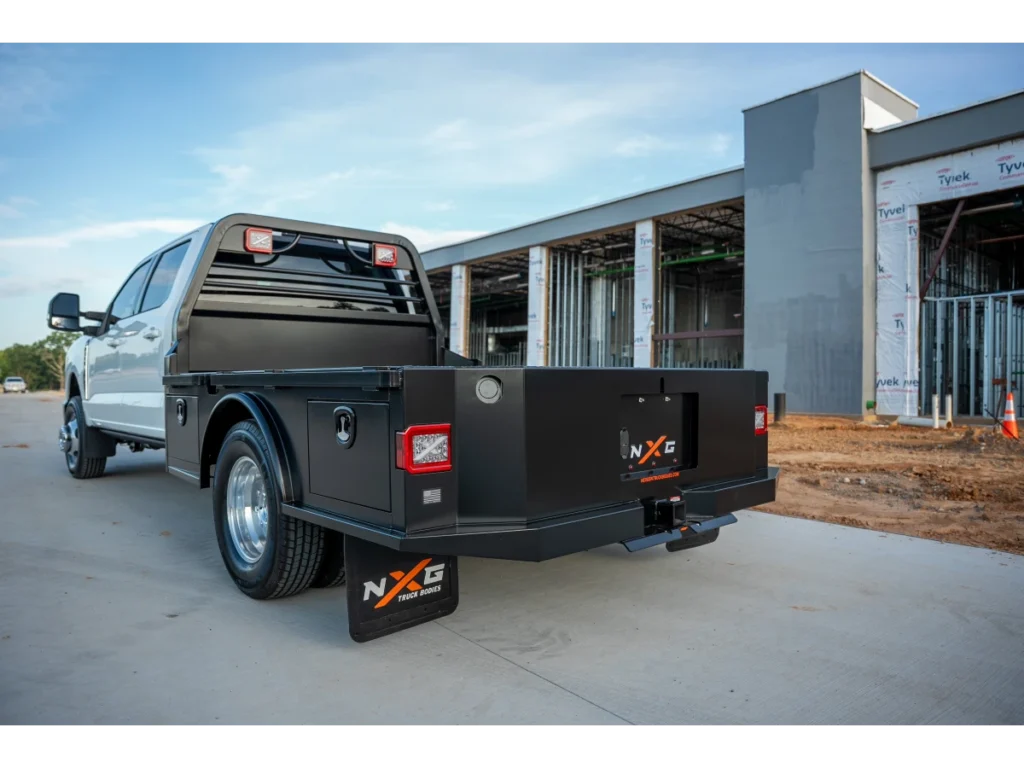

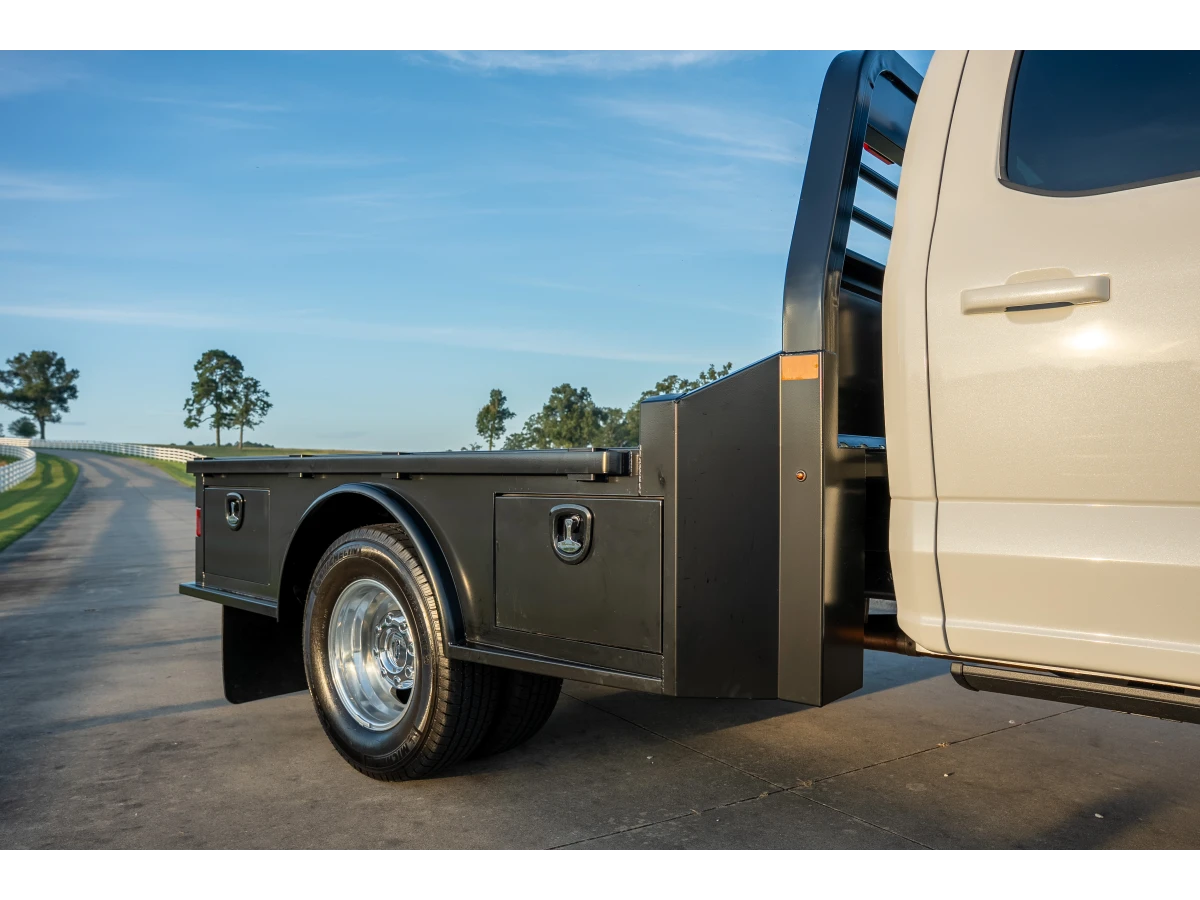

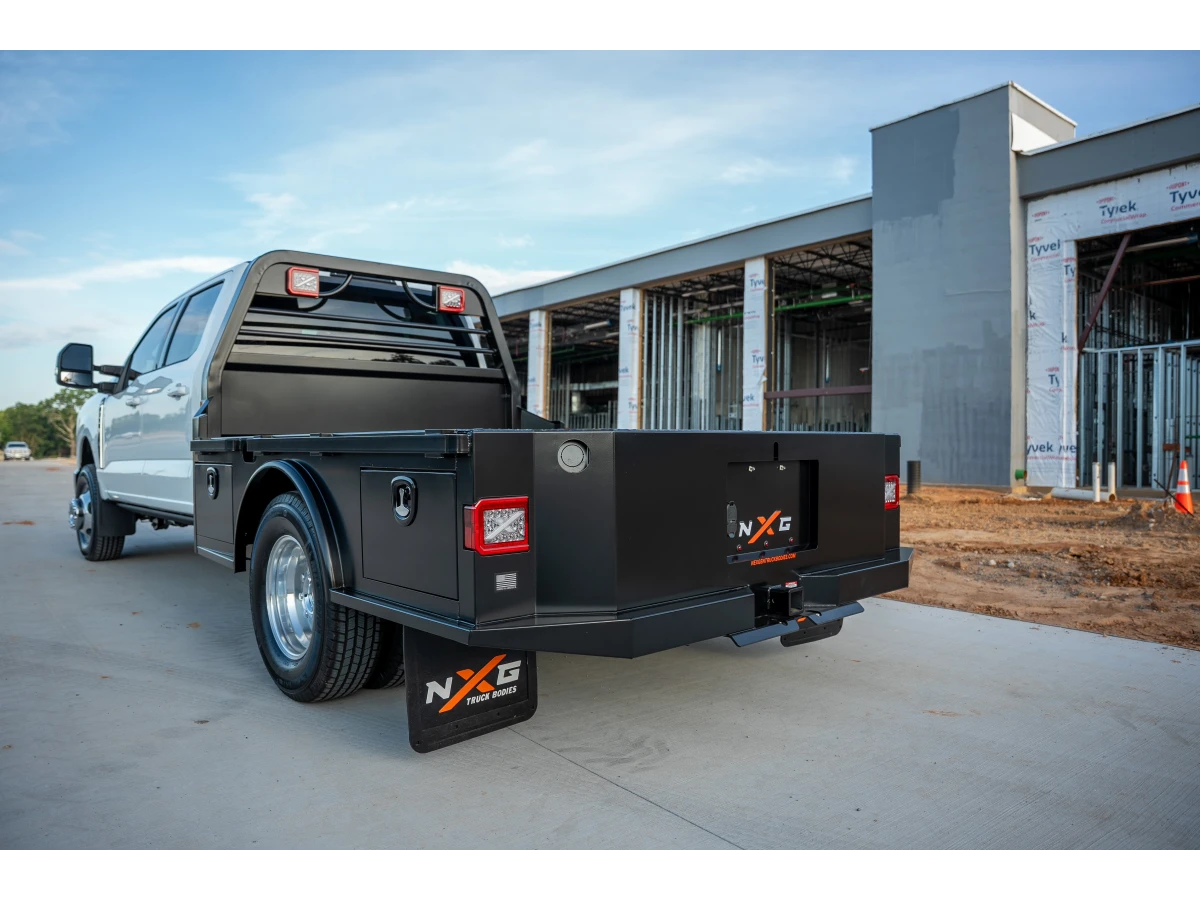

The XSB represents the next generation in skirted truck bodies, combining sleek aesthetics with advanced functionality. It features fully boxed fenders, an integrated headache rack, and exclusive XSteps positioned at multiple access points for improved deck accessibility and storage capacity.
Feature
Availability
Details
Available Lengths
Standard
84″, 8′6″, 9′4″, 11′4″
XCoat
Standard
Multi-stage cleaning and powder coating system for corrosion resistance
XRack
Standard
Integrated headache rack with 3″×4″ steel tubing, mandrel bends, built-in XLights
XDeck
Standard
Fully recessed 1/8″ steel tread plate deck maximizing cargo space
XHitch
Standard
30,000 lb gooseneck, 24,500 lb receiver, pre-wired electrical connections
Side Rails
Standard
3/8″×2″ formed steel with integrated stake pockets and tie-down compatibility
Fuel Fill
Standard
Angled, corrosion-resistant design with rear-facing location
Trailer Light Plug
Standard
Automotive-grade seven-way/four-way 12-volt electrical hookup
Marker Lighting
Standard
DOT-approved LED bullet lights
Toolboxes
Standard
Four lockable flush-mounted boxes with weatherstripping
Toolbox Handles
Standard
Black T-handle compression latches, keyed alike
Fenders
Standard
Heavy-duty steel radius fenders
Side Steps
Standard
XSteps front/behind fenders, plus rear step
Frame Rails
Standard
4″ structural channel steel
Crossmembers
Standard
3″ roll-formed steel for deck support
Rear Skirt
Standard
One-piece formed steel with tapered corners
Reach out to our team for pricing, availability, and installation on this body.
