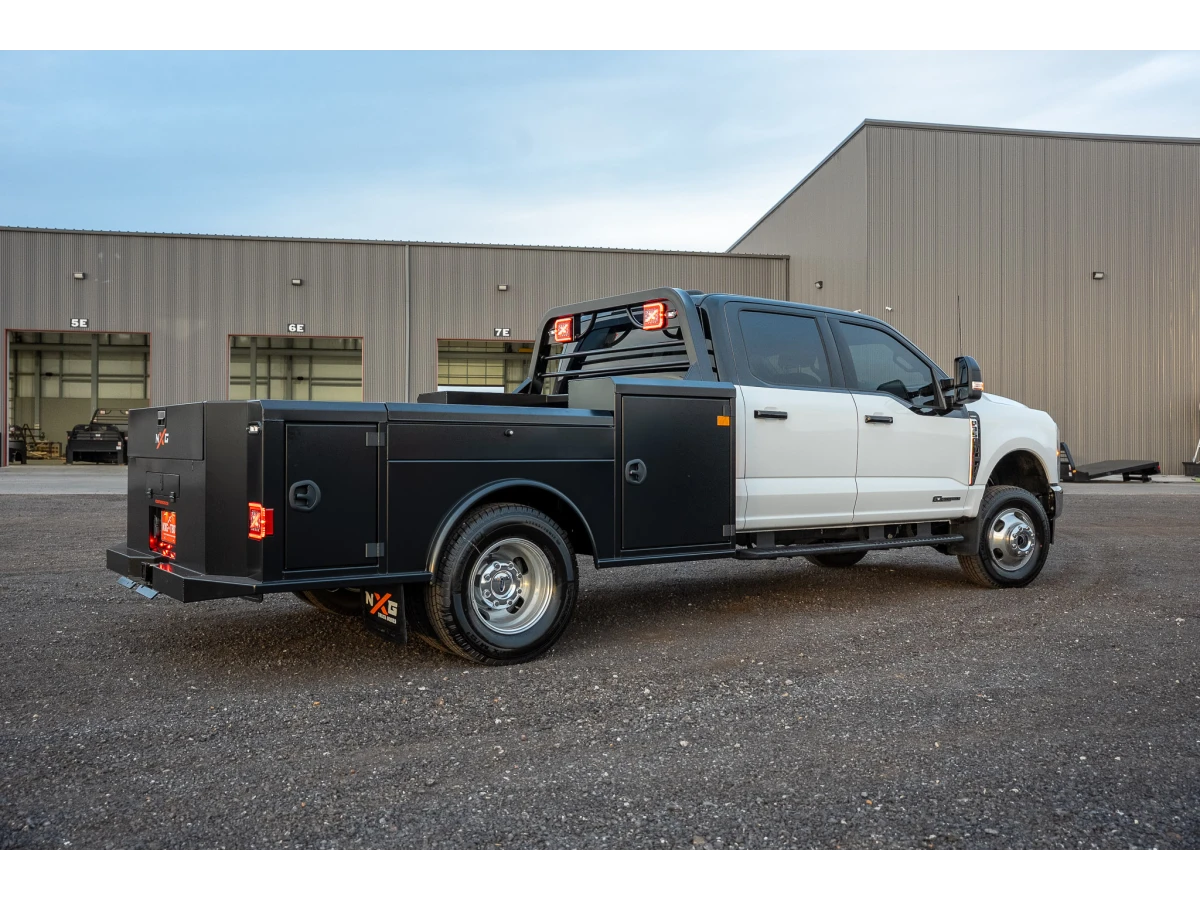

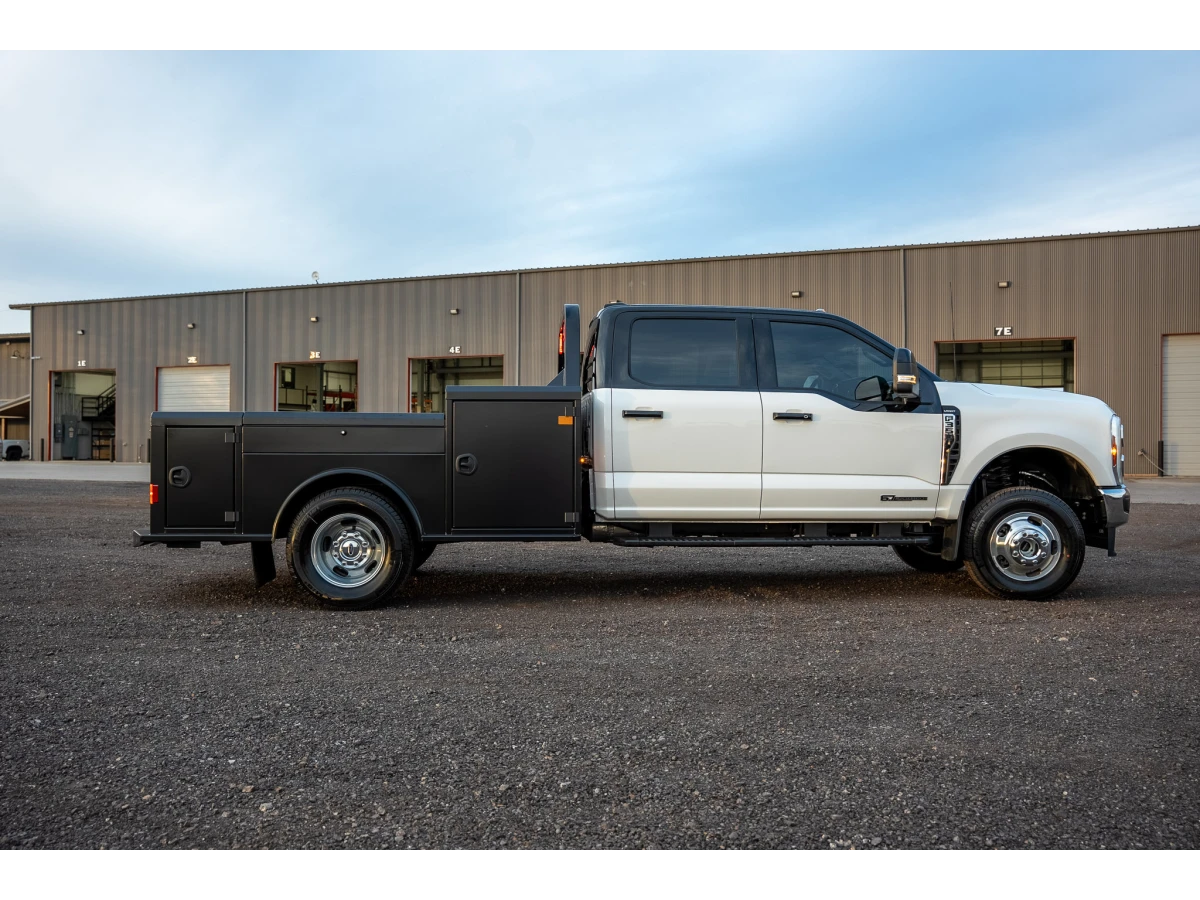

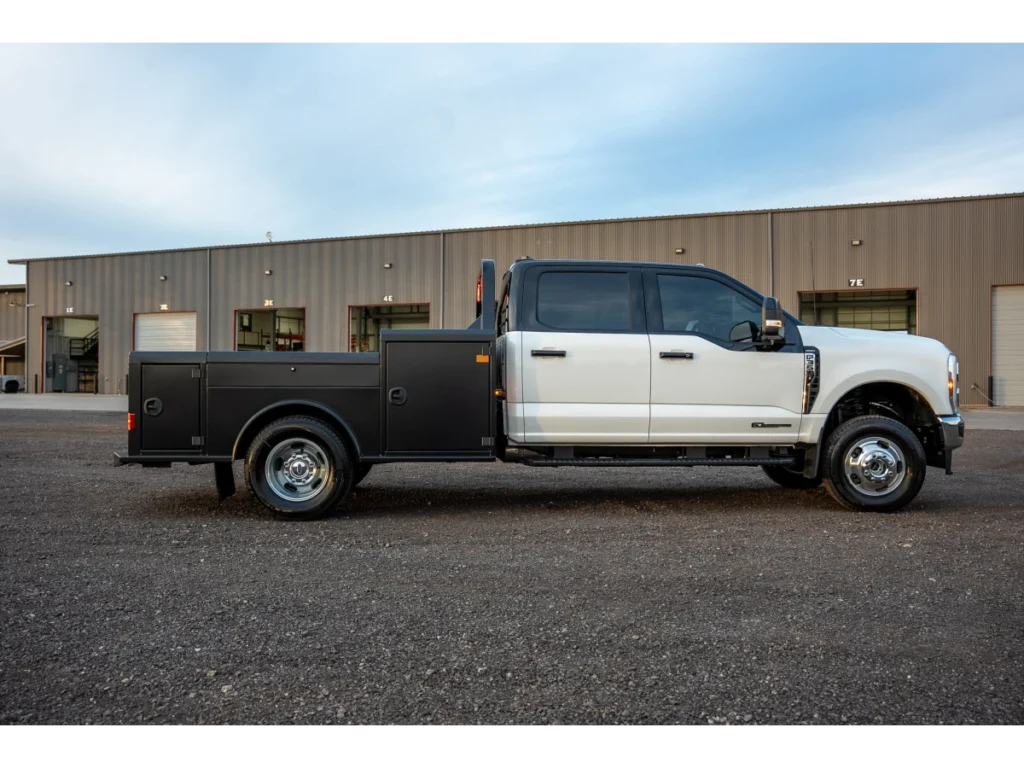

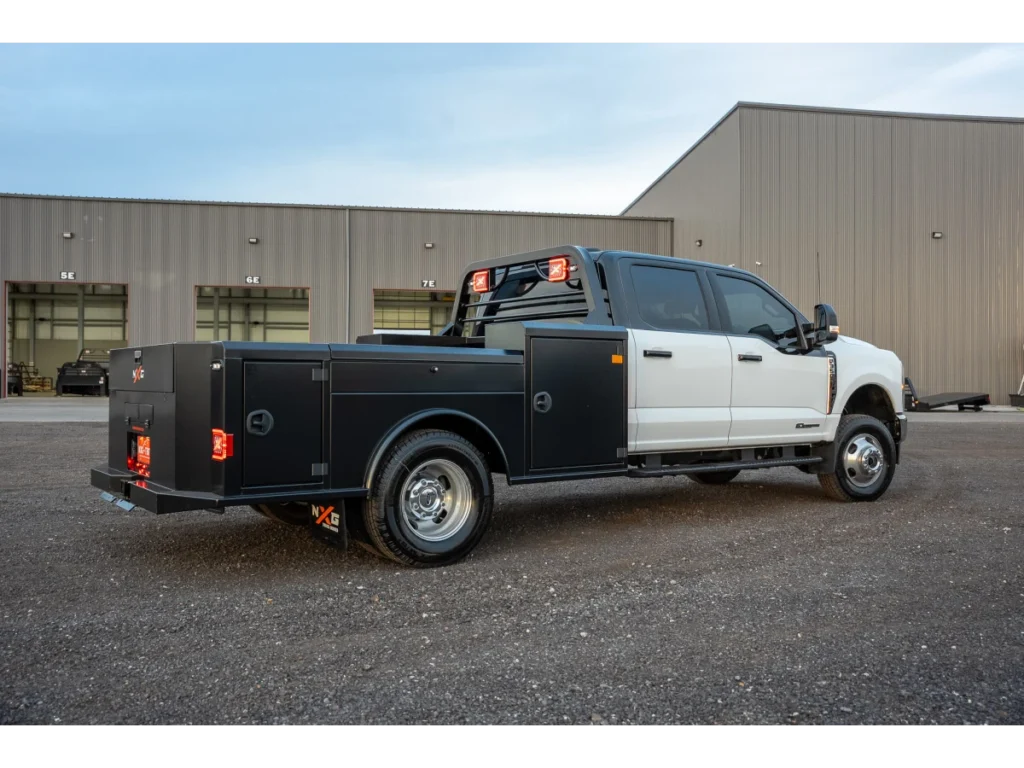

The XWB work body redefines what a true work body should be. Designed for contractors, fleet operators, and professionals who demand reliability every day, the XWB blends rugged construction with refined engineering — built as an integrated system with cleaner welds, improved access, sealing, and safety features rather than traditional modular construction.
Feature
Availability
Details
Available Lengths
Standard
8′6″, 9′4″, 11′4″
Headache Rack
Standard
XRack integrated with welded boxed steel, clean radius corners
Work Lights
Standard
Four high-density LEDs (two in XRack, two at rear)
Deck
Standard
Recessed 1/8-inch steel treadplate XDeck
Frame Rails
Standard
4-inch structural channel steel
Crossmembers
Standard
3-inch structural channel, spaced for maximum support
Rear Skirt
Standard
One-piece formed steel with tapered corners
Gooseneck Hitch
Standard
XHitch rated 30,000 lbs with integrated 7-way plug
Bumper Pull Hitch
Standard
XHitch rated 24,500 lbs with 2.5″ receiver
Airline Track
Standard
Integrated tie-down system for cargo securement
Fuel Fill
Standard
Angled neck with rear-facing design
12V Trailer Wiring
Standard
7-way gooseneck + 7-way/4-way combo rear
Marker Lighting
Standard
DOT-approved LED bullet lights
Toolboxes
Standard
Seven total (includes underbody storage)
Weather Seal
Standard
Channel-lock grooved weatherstripping
Toolbox Handles
Standard
Black T-handle compression latches
Fenders
Standard
Heavy-duty steel construction
Side Steps
Standard
Front/rear fender locations plus large rear step
Reach out to our team for pricing, availability, and installation on this body.
